EQ Series

EQ Series


Ultimate Light-Weight & Compact Size, Meticulous Dedicated Design!

EQ dual speed VFD 3-phase electric chain hoists are designed for light to medium-duty industrial applications. These hoists include a unique no-load high speed function that automatically increase hoist speed up to 130% when the load is less than 30% of working load limit.

Product Features :

  • Compact and lightweight design. Simply-structured integrated body with less component parts.
  • Inverter dedicated design. Transformer-free structure based on the inverter DC power.
  • Equipped with a friction clutch and electronic overload limiter.
  • Shutting off the current to the motor at the time of excessive lifting/lowering to prevent an accident.
  • World-class KITO original chain which is a Special alloy steel quenched chain with high strength, durability and accuracy.
  • Capable of shutting off the motor circuit at hand by pressing the emergency stop button.
  • Can be used with plain trolley, geared trolley and motorized trolley.

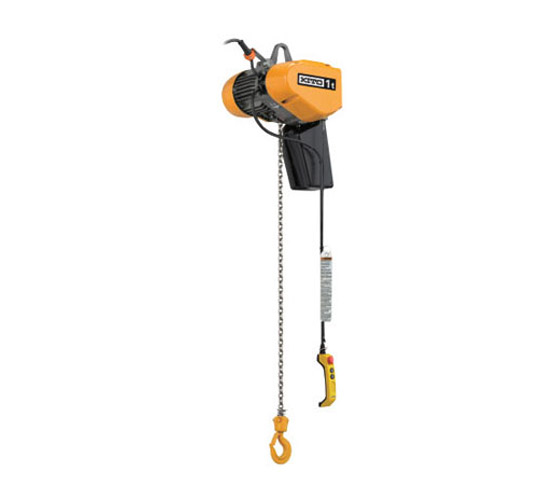

EQ With Suspension Eye - 125kg to 1t

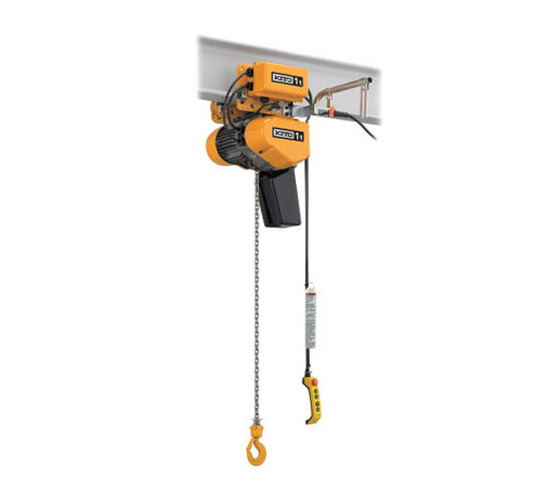

EQM With Motorized Trolley - 125kg to 1t

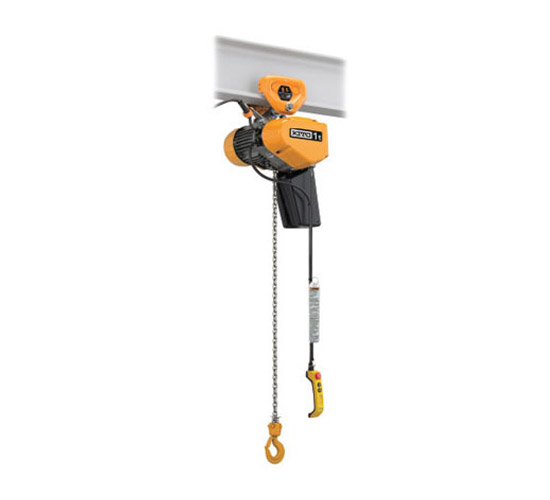

EQSP With Plain Trolley - 125kg to 1t

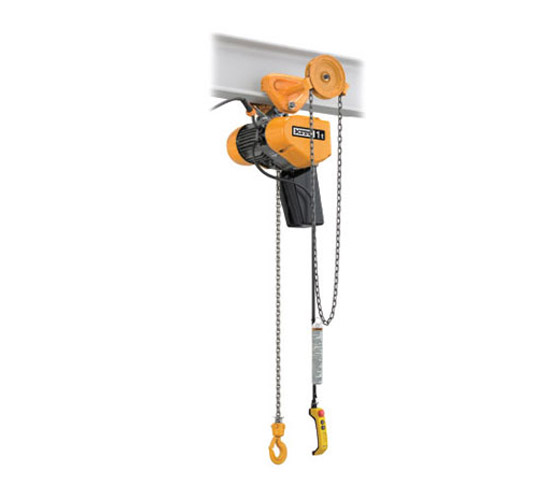

EQSG With Geared Trolley - 125kg to 1t
